Truck tire cove mould

PRODUCT DESCRIPTION:

-Product material: PP,PP/T20

-Mould base:   FUTABA,LKM,HASCO,DME all available

-Runner: Cold/Hot runner

-Cavity: Single or multi cavity

-Standard parts: LKM
-Gate type: Side gate,Sub gate,Pin point gate,Edge gate,etc

-Treatment: Heat treatment, Nitriding, Polishing, etc

-Hardness: HRC 45-52

-The standard appearance of the products for stripe:

-MT(mold tech),YS,HN series

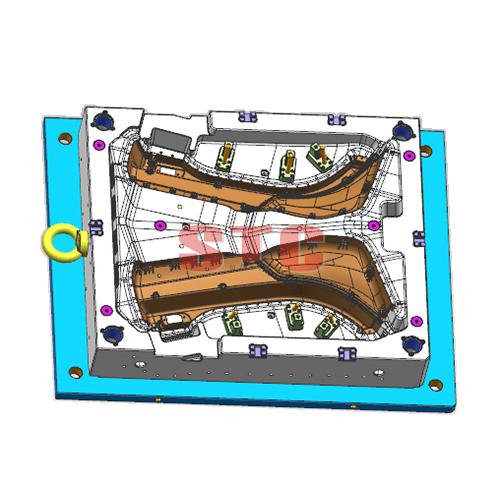

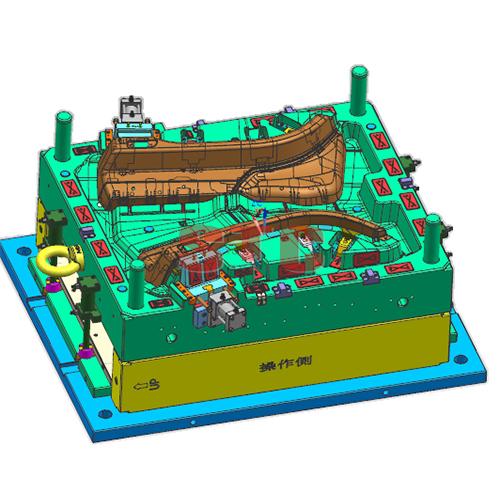

>Mould Name：Exteriror tire cover mold

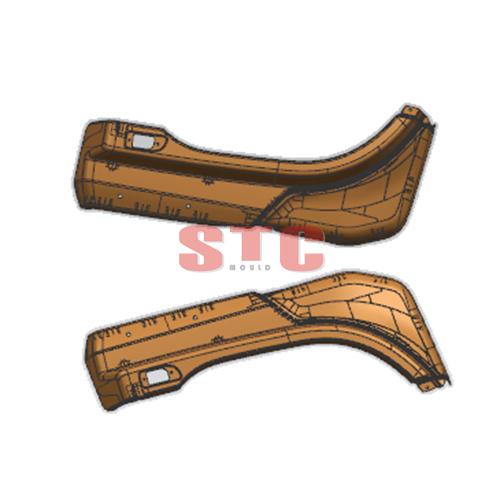

>Product Size：1112*529*248mm

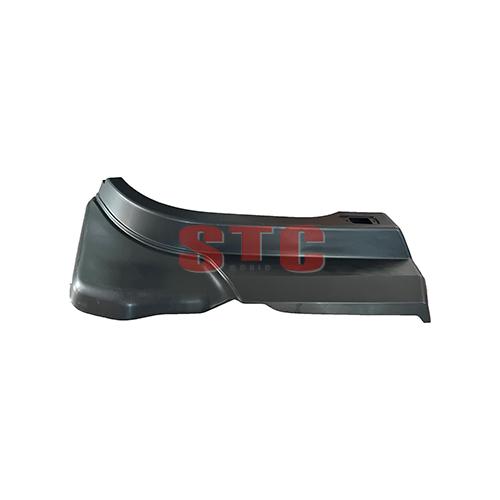

>Product Description：Automobile exterior part mold
>Mould Cavity：left+right cavity
>Mould Size：1840*1470*930mm
>Suitable Machine：1600T injection machine
>Mould Main Material：P20H( depends of customer requirement)
>Mould Injection System：3 hot tips hot runner
>Mould Ejection System：Oil cylinder ejector
>Mould Cycle Time：
>Delivery Time：65 days

>Mould features:Pick by injection machine robot
