industrial large size mould

PRODUCT DESCRIPTION:

We use moldflow for plastic industrial large size mould parts analysis, to decide the gate of injection, thickness of this big industrial parts, reasonable flow and attack test, drop test, and so on. So that the project will be more on safe side even you are developing a new industrial large size plastic parts that never have before. Then, we can get the huge steel moulding material with custom made size, special injection hot runner for this big mould. Step by step, STC has the tooling equipment and large crane that can handling the industrial large size mould.

>Mould Name: Industrial large size mold
>Product Size: 1200*1000*760mm

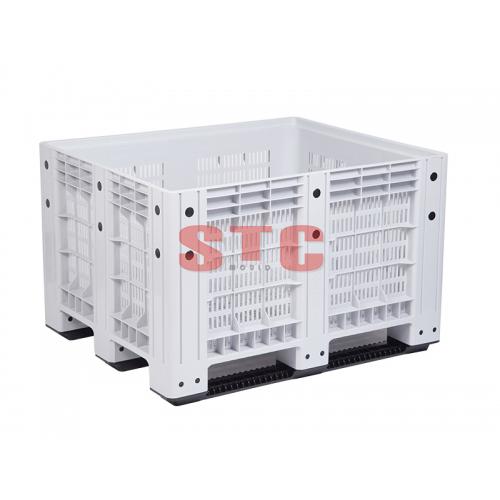

>Product Description：Large box
>Mould Cavity：1 cavity
>Mould Size：2250*2450*1800mm
>Suitable Machine：3500T injection machine
>Mould Main Material：P20H
>Mould Injection System：21 hot tips runner YUDO
>Mould Ejection System：Ejector block
>Mould Cycle Time：180seconds
>Delivery Time：90 working days

>Mould features:Full Automatic production line
