2 way pipe for engineering truck filter mold

PRODUCT DESCRIPTION:

Quality control is very important to each Mould project. We use advanced measuring facilities and well-constructed quality control system to control every process of design, production and quality check efficiently.

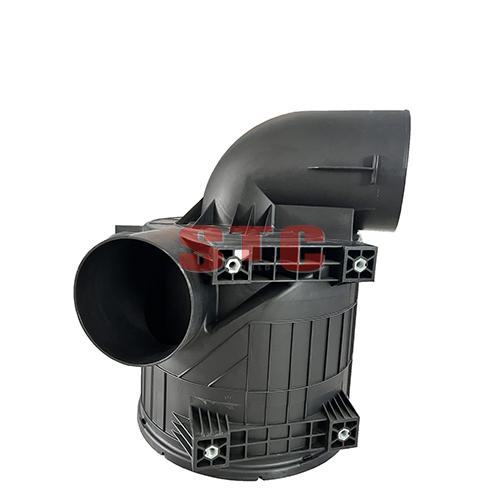

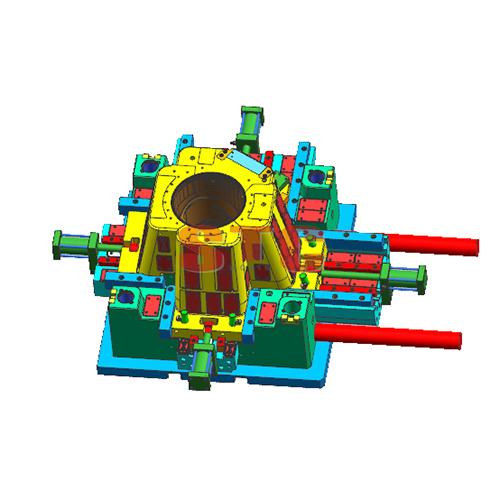

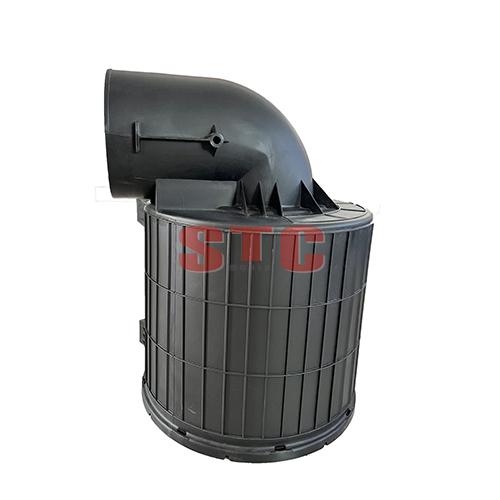

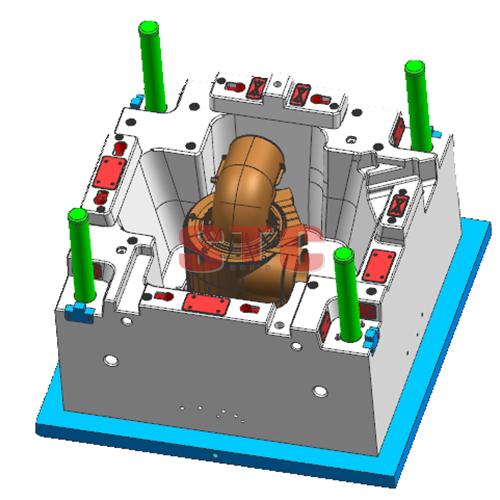

>Mould Name：2 Way pipe fitting for engineering truck filter mold
>Product Size：443*443*546mm
>Product Description：2 way pipe fitting for air vent filter
>Mould Cavity：1 cavity
>Mould Size：1250*1030*1270mm
>Suitable Machine：1450T injection machine
>Mould Main Material: P20H
>Mould Injection System：3 hot tips yudo hot runner
>Mould Ejection System： Ejector by oil cylinder
>Mould Cycle Time：80 seconds / shot
>Mould Running：perfect cooling system with good designing
>Delivery Time：50 days

>Mould features:Semi-Automatic running, moldtech texture part, metal inserts part molding
