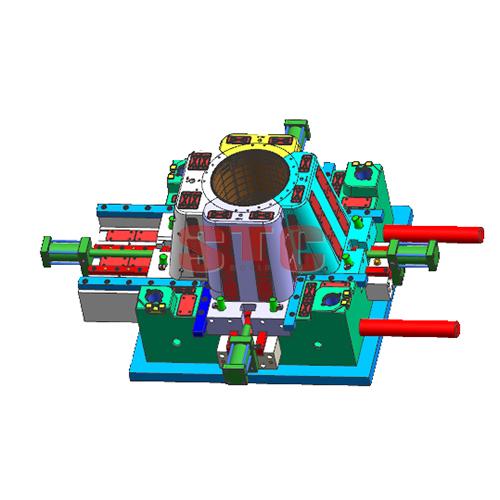

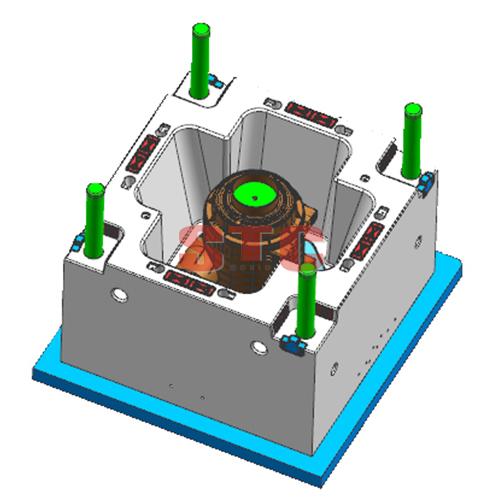

Auto part mold for filter body

PRODUCT DESCRIPTION:

1/Car part mold for international car brand,such as honda, suzuki, automotive mold.

2/all size of plastic injection mold for automotive industry.

3/Moldtech texture with DME standard mould specification.

>Mould Name：Auto part mold for filter body
>Product Size：540*514*434mm

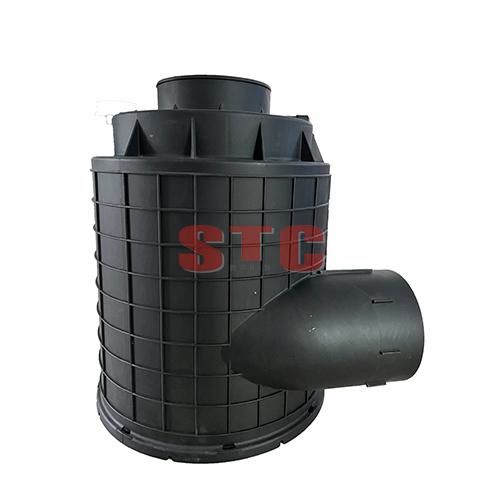

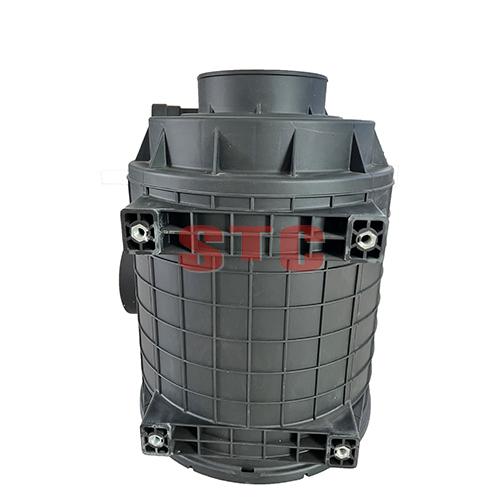

>Product Description：Auto part for filter main body
>Mould Cavity：1 cavity
>Mould Size：1140*1120*1260mm
>Suitable Machine：Haitian 1450Ton
>Mould Main Material：P20H
>Mould Injection System：1 Hot tip Yudo hot runner
>Mould Ejection System：Mechanical ejection
>Mould Cycle Time：60 seconds / shot
>Mould Running：perfect cooling system designing
>Delivery Time：65 working days

>Mould features:Semi-Automatic running, moldtech texture part,metal insets mold
