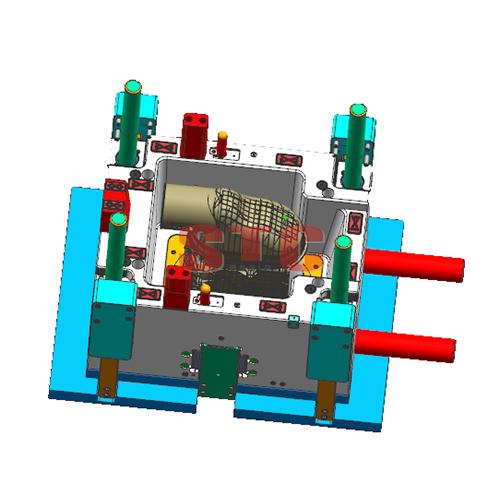

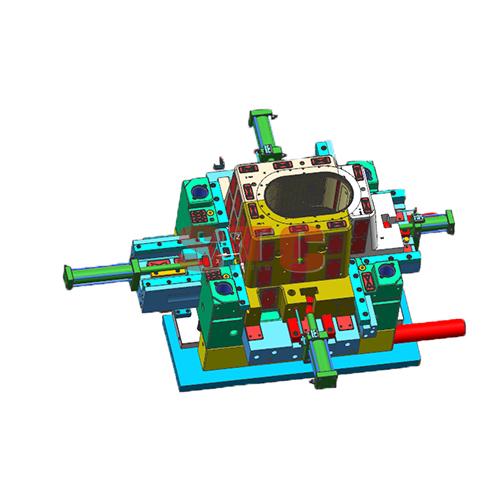

filter element body mold

PRODUCT DESCRIPTION:

1/ air vent filter mold for automobile

2/ filter element air mold

3/metal inserts molding part

4/filter element mold and design

>Mould Name：filter element body mold for automobile

>Product Size：586*311*562mm

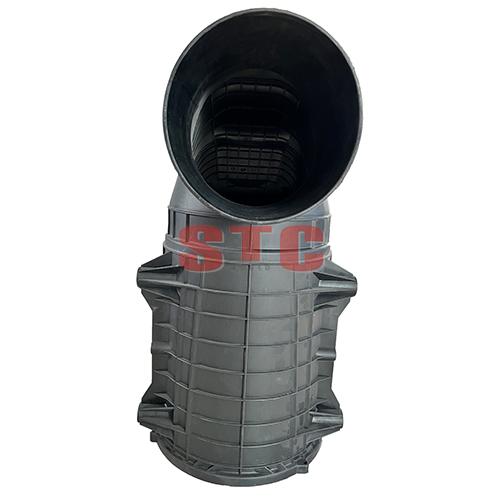

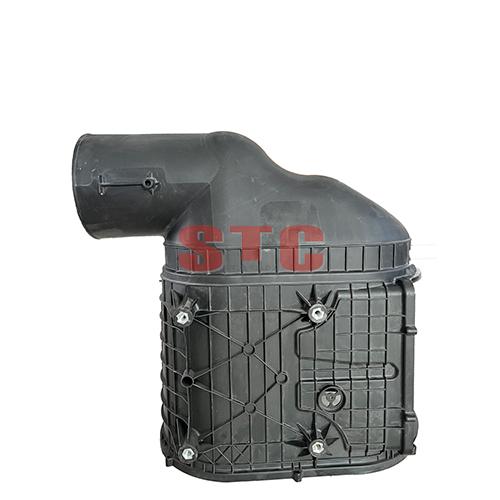

>Product Description：air vent filter system body part for automotive

>Mould Cavity：1 cavity

>Mould Size：1330*1000*1220mm

>Suitable Machine：Haitian 1450Ton

>Mould Main Material：P20H steel

>Mould Injection System: 1 tip Yudo hot runner

>Mould Ejection System：Ejector by oil cylinder

>Mould Cycle Time：15mins

>Mould Running：

>Delivery Time：60 working days after confirm mold design

>Mould features: 1/ metal inserts part

2/ completely texture

3/ semi-automatic running
