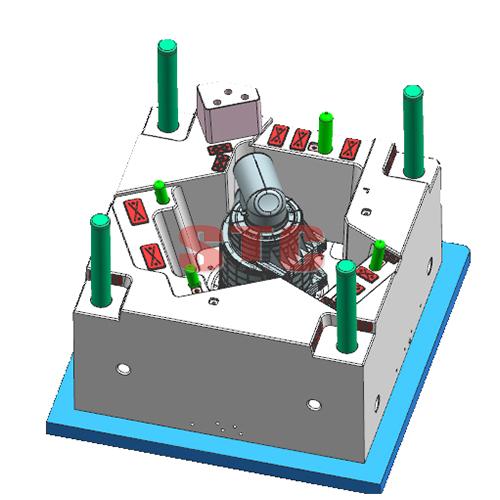

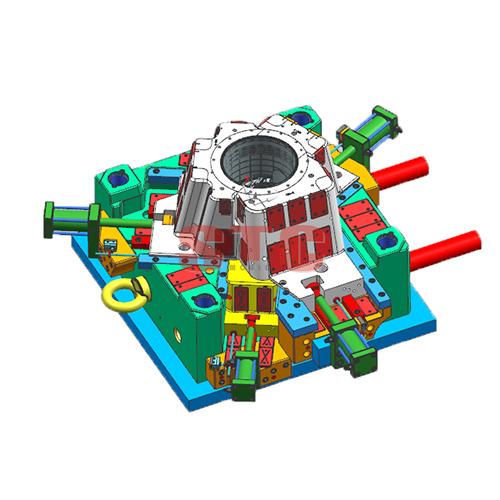

forklift truck part mold

PRODUCT DESCRIPTION:

We use high quality Imported steel material, sequential hot runner system and best cooling system to make a high standard automotive part mould.

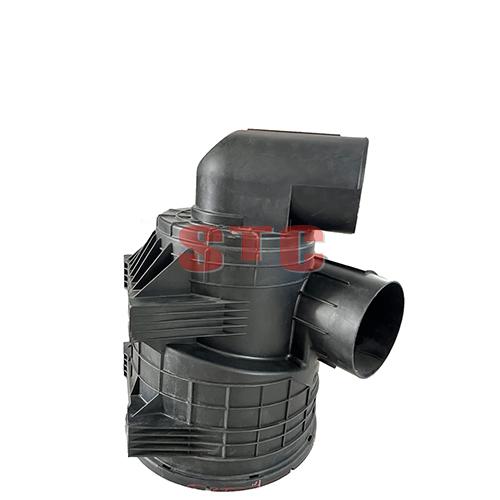

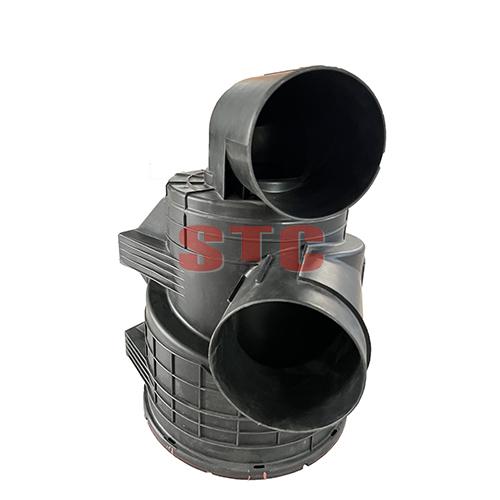

>Mould Name：2 Way pipe fitting for forklift truck mold
>Product Size：411*380*516mm
>Product Description：2 way pipe fitting for air vent filter
>Mould Cavity：1 cavity
>Mould Size：1210*1210*1027mm
>Suitable Machine：1450T injection machine
>Mould Main Material: P20H
>Mould Injection System：2 hot tips yudo hot runner
>Mould Ejection System： Ejector by oil cylinder
>Mould Cycle Time：80 seconds / shot
>Mould Running：perfect cooling system with good designing
>Delivery Time：60 days after confirm mold design

>Mould features:moldtech texture part, metal inserts part molding
