Engineering Truck main body Mold for filter

PRODUCT DESCRIPTION:

1. STC Mould Company is a professional manufacturer of all size of injection mold for Automotive part industry.

2. Competitive price with high quality

3. Customize part with 3D part design stp ,prt ,solidwork and so on.

4. More care on customer service.

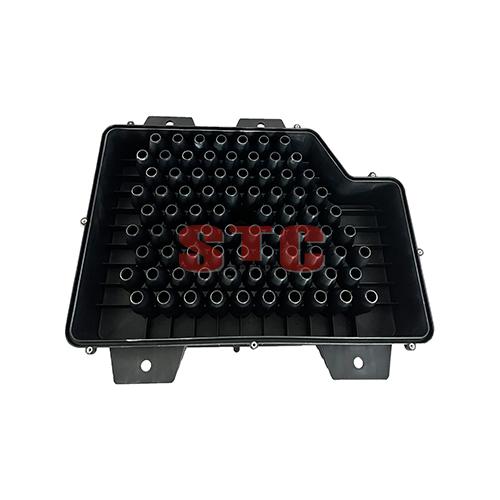

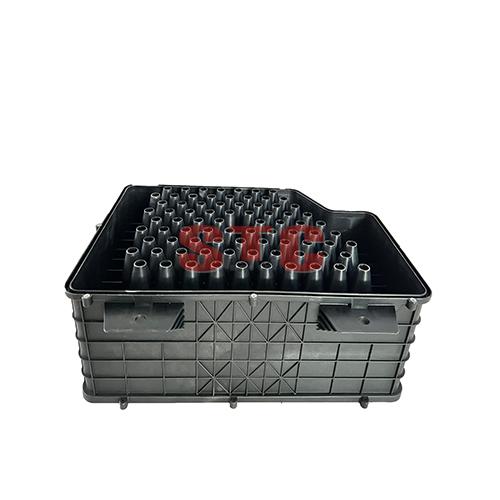

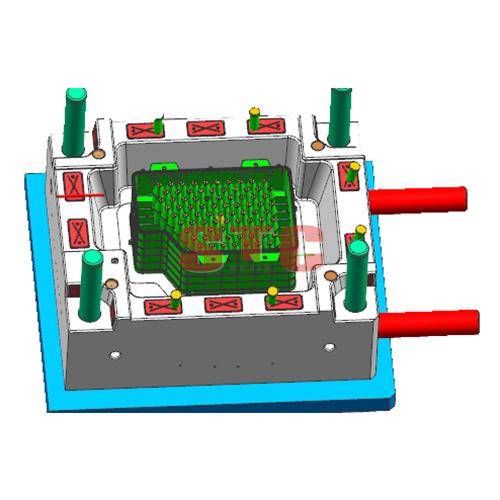

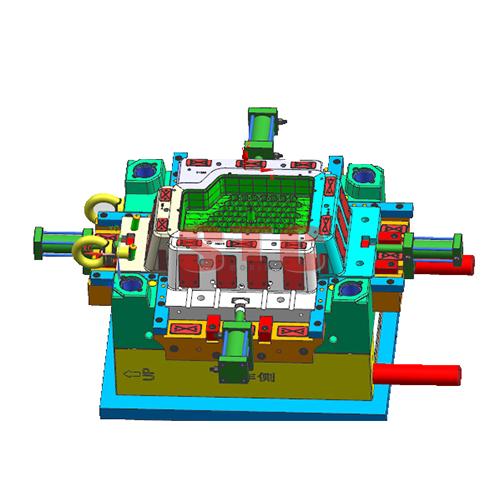

>Mould Name：Engineering truck filter main body mould
>Product Size：544*432*220mm
>Product Description：automotive vent air filter system for truck
>Mould Cavity：1 cavity
>Mould Size：1150*1010*965mm
>Suitable Machine：1000T injection machine
>Mould Main Material: P20H
>Mould Injection System：4 hot tips yudo hot runner
>Mould Ejection System：Mechanical ejection by machine
>Mould Cycle Time：154.6 seconds / shot
>Mould Running：perfect cooling system with good designing
>Delivery Time：50 days

>Mould features:Semi-Automatic running, moldtech texture part, metal inserts part molding
