filter element cover mold

PRODUCT DESCRIPTION:

STC MOULD is the most useful company of industrial air filter frame molds, and has rich experience in manufacturing air filter molds for industrial.

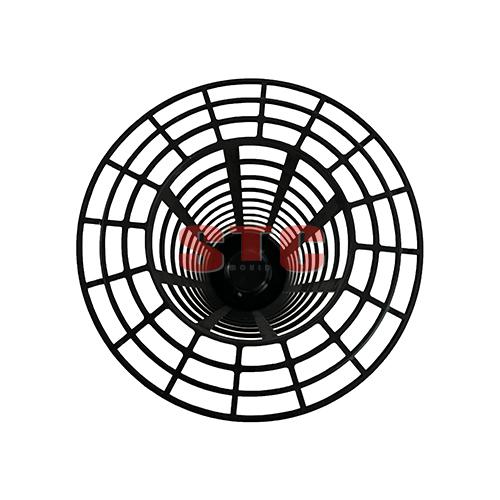

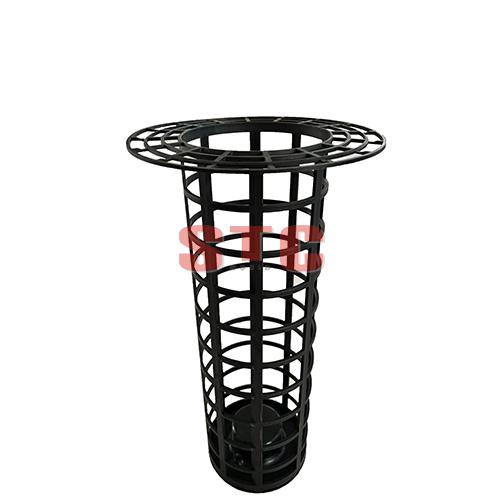

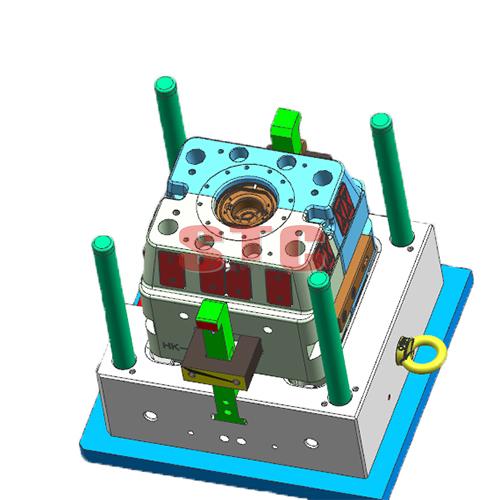

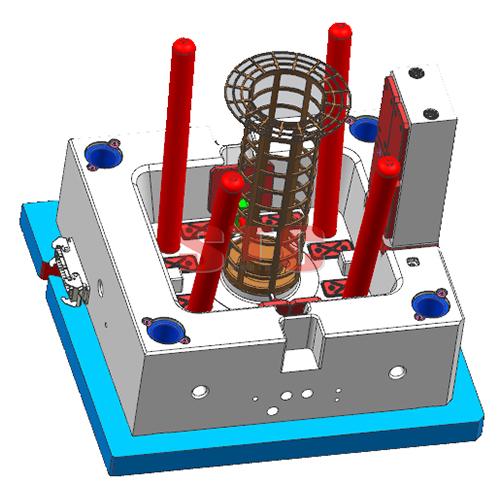

>Mould Name：filter element plastic injection mold

>Product Size：235*235*447mm
>Product Description：automotive filter system part
>Mould Cavity：1 cavity
>Mould Size：720*680*750mm
>Suitable Machine：800T
>Mould Main Material：718H
>Mould Injection System：1 hot tip Yudo hot runner
>Mould Ejection System：Mechanical ejection system by machine
>Mould Cycle Time：7 seconds per shot
>Mould Running：
>Delivery Time：45 days after confirm mold design

>Mould features:fully complete texture, semi-automatic fall down
