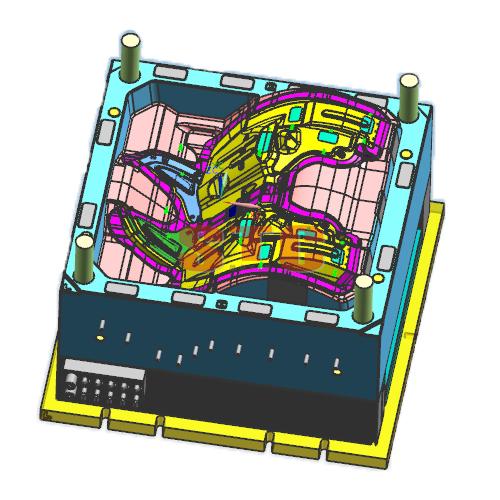

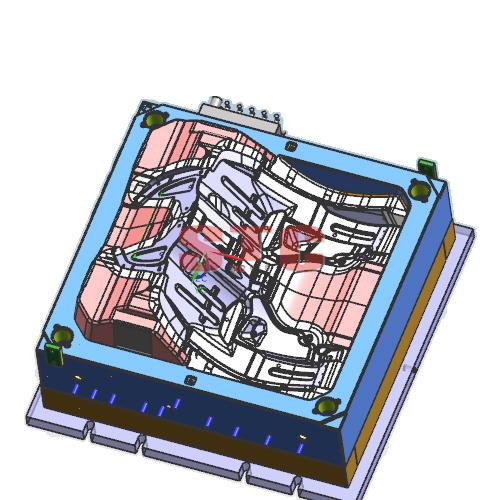

truck tire cover mold

PRODUCT DESCRIPTION:

High efficiency, short delivery time, competitive price.

You may send your requirement, or 2D, 3D design to us, We can make tire cover mould exactly as your needs.

STC Commodity mould offers full service ranging from the orginal conception to product completion, totally the whole solution from the paper sketch to the functional part in your hand.

>Mould Name: Truck tire cover mold
>Product Size: 908*420*398mm
>Product Description：Injection mold for truck tire cover auto
>Mould Cavity：1 cavity
>Mould Size：1300*1330*1180mm
>Suitable Machine：haitian 1600T injection machine
>Mould Main Material：DIN.2311
>Mould Injection System：6 hot tips runner YUDO Brand
>Mould Ejection System：Mechanical ejector
>Mould Cycle Time：
>Delivery Time：75 working days

>Mould features:complex mould structure, Fine cooling system design,yudo hot runner ‿professional filter system design, suitable for high speed recycled material injection production Stroke switch controls ejection process precisely,Oil and water
